EinScan-SE V2 3D Scanner, a powerful companion for educators and individuals
EINSTAR, an affordable handheld 3D scanner, makes high-quality 3D data available to everyone.

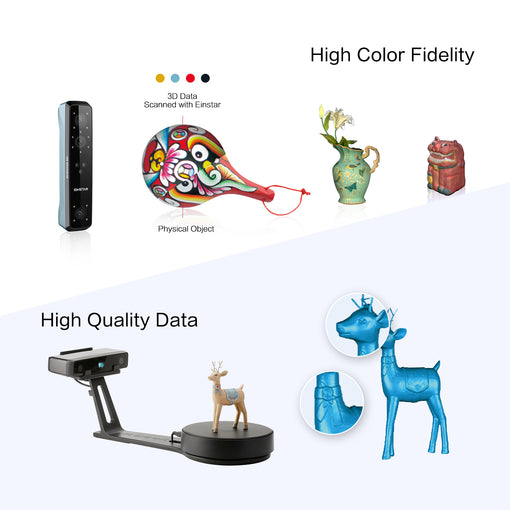

High Quality Data
Einstar collect high density point cloud data fast and easily with point distance up to 0.1mm. Benefit from built-in RGB color camera. 3D data with authentic colors.
EinScan-SE V2 generates every scan have a high-quality 3D data.
Wider 3D Scanning Range
EinScan-SE V2 Minimum Scan Volume: 30mm *30mm *30mm
Einstar largest scan volume depends on computer RAM, larger RAM can support larger objects.

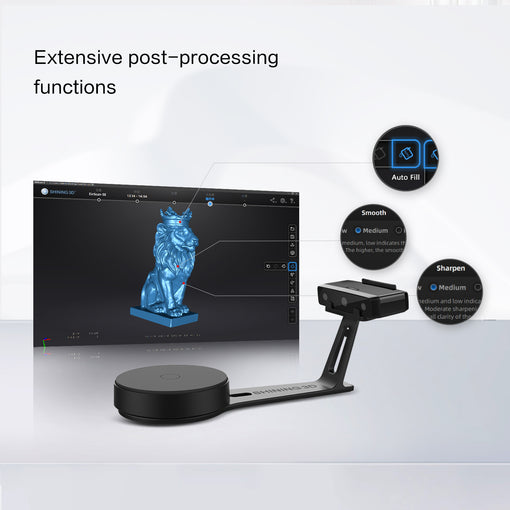

Extensive Post-processing Functions
Software of EinScan-SE V2 has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.
EinScan-SE V2 reconstruct the real geometry of the object with fine details.
Compatible with 3D Printers
Auto meshing to watertight 3D data.
Seamlessly connect to 3D printers.
Provide API access service for any brand 3D printers.

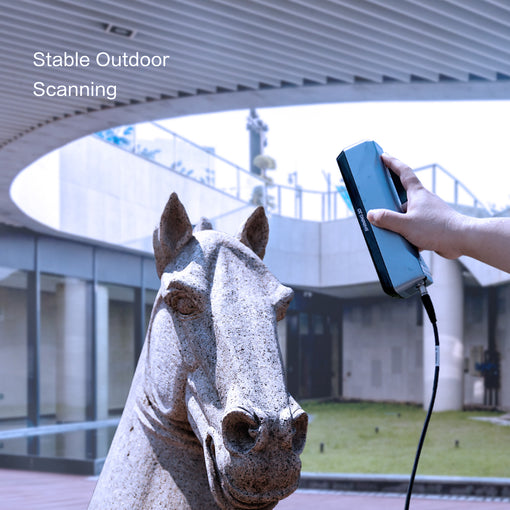

Stable Outdoor Scanning
Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects.
Streamlined User Experience
EinScan-SE V2 support One-click scanning and automatic calibration with no rigid set-up required, 1 second for a single scan, 45 seconds for a 360-degree scan under auto scan mode.
Einstar only need one USB cable for data transmission and power. Clear and elegant workflow for scanning and post processing. Easy to setup, plug and play.
|Minimum Scan Volume||30 × 30 × 30 mm|
|Maximum Scan Volume||Fixed Scan with Turntable: 200×200×200 mm, Fixed Scan without Turntable: 700×700×700 mm|
|Single Scan Range||200×150 mm|
|Point Distance||0.17 mm ~ 0.2 mm|
|Camera Resolution||1.3 Mega Pixels|
|Light Source||White LED|
|Computer Requirements (Required)||USB:1 ×USB 2.0 or 3.0; OS: Win7, 8 or 10 (64 bit); Graphic Card: Nvidia series; Graphic memory: ＞1G; CPU: Dual-core i5 or higher; Memory: ＞8G|
|Computer Requirements (Recommended)||Graphics card: NVIDIA GTX660 or higher； Graphics memory: ＞2 G; CPU: Dual Core I5 or higher; Memory: ＞16 G|
|Scanner Body Weight||2.5 kg|
|Power Supply||40 W|
|Input Voltage||DC：12 V, 3.33 A|
|Packing Dimensions||570×210×210 mm|
|Load Capacity of Turntable||5 kg|
|Scan Mode||Structed Light Scan|
|Point Distance||0.1 mm ~ 3 mm|
|Light Source||Infrared VCSEL structured light|
|Working Distance||Effective Working Distance: 160mm-1400mm; Optimal Working Distance: 400mm|
|Depth of Field||160-1400mm|
|Maximum FOV||434mm*379mm (under optimal work distance)|
|Scan Speed||980,000points/s, up to 14FPS|
|Align Modes||Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers|
|Interface||USB2.0 or above|
|Output Formats||OBJ; STL; PLY; P3; 3MF|
|Carrying Case Size||245mm*245mm*90mm|
|Scanner Body Weight||500g|
|Operating Temperature Range||0-40℃|
|Operating Humidity Range||10-90%|
|Certifications||CE, FCC, ROHS, WEEE, KC|
|Recommended Configuration||OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB|
|Basic Computer Configuration||OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB|
*Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
*Global Markers alignment is only available in Object Scan Mode
*Einstar must require computer equipped with NIVIDA graphics card
