3D Scanner for SolidWorks: Practical Scan-to-CAD Workflow

When engineers need to reverse engineer an existing part, modify a prototype, or recreate a component without CAD files, a 3D scanner can work well with SolidWorks. However, the scanner does not normally create a native SolidWorks part automatically. It captures the physical object as point-cloud or mesh data. From there, you either import that scan as reference geometry or reconstruct the measured shape into CAD features that can be edited in SolidWorks.

For reverse engineering, this distinction matters more than brand compatibility. The useful workflow is not simply scan → SolidWorks. It is scan → clean geometry → choose the right CAD conversion path → validate the result.

What Does "3D Scanner for SolidWorks" Really Mean?

A SolidWorks-compatible workflow depends mainly on data format and what you expect to do with the scan after import.

Current SOLIDWORKS Design can import common mesh formats including STL, OBJ, PLY, and 3MF. Its ScanTo3D tools can also open mesh and point-cloud data and provide mesh preparation and surface-reconstruction tools. That means you do not need a scanner that produces a special SolidWorks-only file.

The harder question is what kind of model you need.

If the scan is only a visual or geometric reference, a mesh may be sufficient. If you need controlled hole diameters, planes, cylinders, sketches, fillets, or dimensions that can be changed later, the scan should become reference data for CAD reconstruction.

Choose the CAD Path Before You Scan

There are two practical routes from a physical part into SolidWorks.

Route 1: Import the Mesh as Reference Geometry

This route is useful when you need the scanned shape inside SolidWorks for reference, comparison, assembly context, or limited hybrid modeling.

SOLIDWORKS can import mesh files as graphics bodies, mesh BREP bodies, surfaces, or solids depending on the file and import settings. Mesh geometry can be selectable and useful, but it is still made from facets. It does not automatically become the original parametric feature structure of the part.

For relatively regular geometry, SolidWorks also provides tools such as Surface From Mesh and ScanTo3D surface reconstruction.

Route 2: Reconstruct CAD Before Importing to SolidWorks

For reverse engineering, this is often the cleaner path.

The scan mesh is used to fit planes, cylinders, cones, cross-sections, reference geometry, and sketches in dedicated scan-to-CAD software. The reconstructed model can then be exported in a neutral CAD format such as STEP or IGES and opened in SolidWorks. EXModel supports STEP and IGES export, while SolidWorks 3D Interconnect reads both formats.

This separates measurement data from design geometry. A scanned cylindrical surface may contain thousands of triangles; the reconstructed CAD feature can instead be defined by a controlled diameter, axis, and position.

Capture Geometry for CAD, Not Just a Good-Looking Mesh

Before scanning, identify the features that SolidWorks will need later.

For a mechanical component, these may include datum faces, mounting holes, bores, shaft centers, bolt patterns, mating surfaces, and free-form areas that cannot be measured efficiently with simple hand tools.

Resolution alone should not drive the scanner choice. Fine point spacing can help capture small edges and surface details, but dimensional reliability across the part also matters. For larger components, feature-to-feature consistency can be more important than maximum local mesh density.

Surface condition affects the result as well. Reflective metal, dark finishes, deep recesses, and smooth repetitive geometry can require different scan modes, viewing angles, markers, or temporary surface preparation.

A dense mesh is useful only if the geometry needed for the CAD model is reliable.

Clean the Scan Before Sending It Downstream

Raw scan data is often heavier than SolidWorks needs.

Remove unwanted background geometry and isolated data. Align all necessary scan passes, check for drift, and close only noncritical holes where the missing surface can be safely inferred. Preserve sharp edges, holes, and mating features during smoothing.

Mesh reduction can also matter. Very dense scans increase file size and can make CAD interaction slower without improving the engineering features being reconstructed. SolidWorks itself provides mesh decimation and simplification workflows for imported scan data.

Units and orientation deserve a final check before export. Confirm the scan is at the correct scale and establish a useful coordinate system when datum planes or assembly orientation matter.

Do not use mesh cleanup to repair critical geometry that was never captured. Rescan it or measure it independently.

Bring the Scan Into SolidWorks

For the direct route, export an appropriate mesh or point-cloud format and use the relevant SolidWorks import options.

In SOLIDWORKS Design 2026, ScanTo3D is available in Professional, Premium, and Ultimate. Its workflow includes Mesh Prep and Surface Wizard tools for preparing scan data and reconstructing surfaces.

For the reconstructed-CAD route, use the mesh as measured reference in scan-to-CAD software, create the required engineering geometry, then export STEP or IGES.

Whichever route you use, do not assume the imported model is correct because it opens successfully. Check scale, orientation, important dimensions, and reconstructed features against the original scan or independent measurements.

Validate the CAD Model Against the Scan

Reverse engineering ends with verification, not with the first successful solid model.

Compare critical faces and features against the mesh. Check hole centers, axes, mounting patterns, profile boundaries, and mating regions.

If the original component is worn or damaged, decide which scanned surfaces represent current condition and which need to be rebuilt to nominal design intent.

Some dimensions may still be better verified with a micrometer, bore gauge, caliper, or CMM. Scanning provides dense surface geometry; it does not replace every measurement method.

The final SolidWorks model should represent the engineering intent required by the project, not every bump, burr, and wear mark captured by the scanner.

Choosing an EINSTAR Workflow for SolidWorks

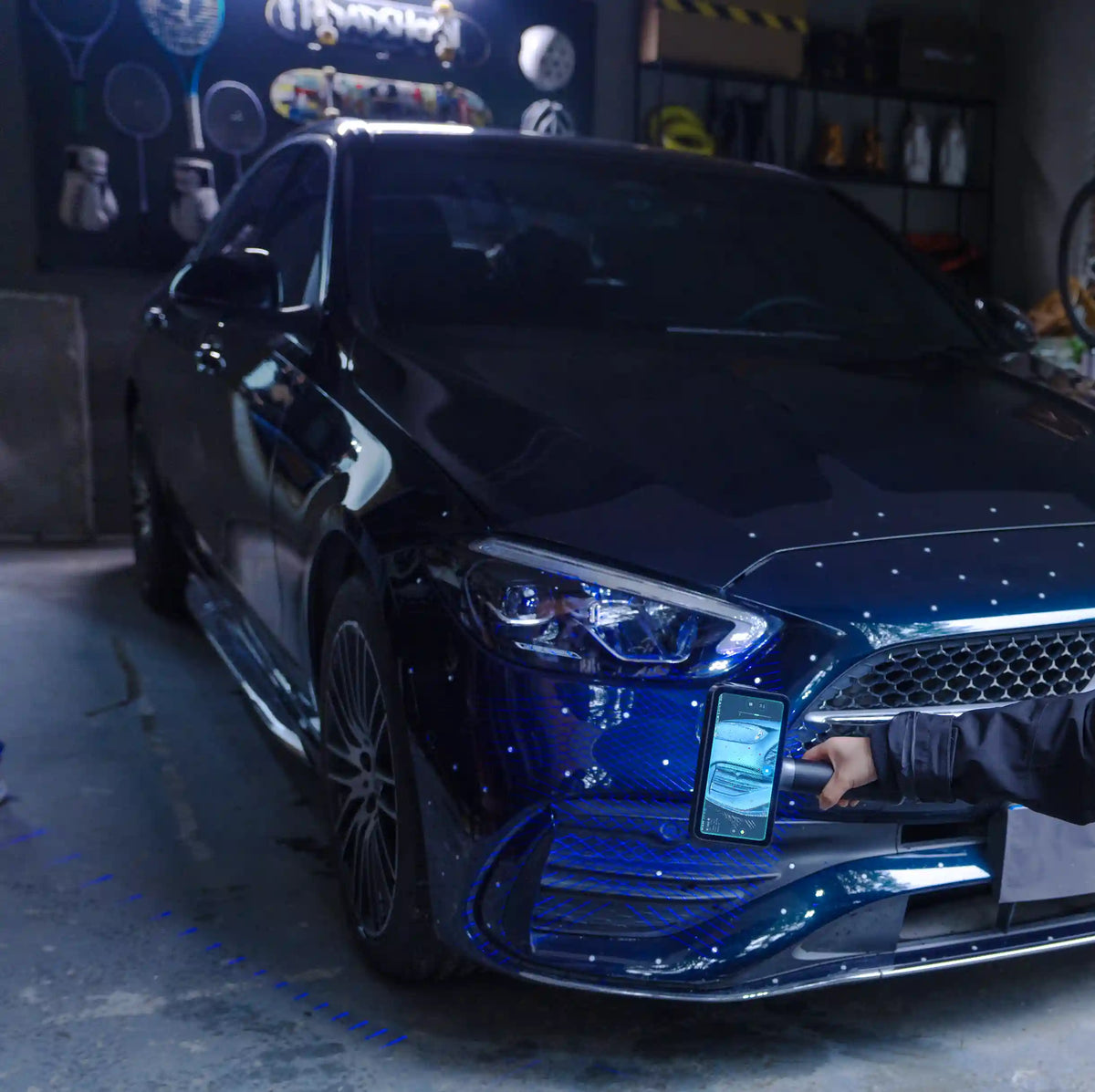

When selecting among handheld 3D scanners for a SolidWorks workflow, focus on part size, required detail, surface material, tracking, dimensional requirements, and export formats.

For mechanical reverse engineering, EinScan Rigil offers Laser HD and IR Rapid modes. Project specifications list Laser HD resolution from 0.05 to 10 mm, volumetric accuracy up to 0.04 + 0.06 mm/m, and STL, OBJ, PLY, 3MF, and ASC outputs. Those formats provide practical routes into SolidWorks as scan data or into an intermediate reconstruction workflow. The official Rigil page also lists 0.05 mm high resolution and 0.04 + 0.06 mm/m volumetric accuracy.

For the CAD stage, EXModel can edit meshes, reconstruct primitives and reference geometry, create sketches, and export reconstructed features or profiles in formats including STEP and IGES.

The scanner is only the first part of the chain. Choose the combination that preserves the geometry you need and produces a manageable path to editable CAD.

Conclusion

A 3D scanner for SolidWorks does not need a special SolidWorks output. It needs to capture reliable geometry and deliver data that fits the next stage of the workflow.

Use direct mesh import when scan geometry is mainly a reference. Use CAD reconstruction when you need controlled, editable engineering features.

In both cases, clean the scan deliberately and validate the final model against the physical part before using it for redesign or manufacturing. For workflows that require both scan data capture and CAD reconstruction, solutions such as EinScan Rigil and EXModel can help streamline the path from physical parts to editable SolidWorks models.

FAQ

Q1: Can I Edit a 3D Scan Directly in SolidWorks?

Yes, but the level of editability depends on how the scan is imported. A mesh body can support reference and hybrid modeling workflows, but it is not the same as a parametric part with editable dimensions and original feature history.

Q2: Do I Need ScanTo3D to Use Scanner Data in SolidWorks?

No. SolidWorks can import several mesh formats without ScanTo3D, and you can also reconstruct the scan in external scan-to-CAD software before importing STEP or IGES. ScanTo3D is useful when you want its mesh preparation and surface-reconstruction tools inside SolidWorks.

Q3: What File Format Should I Use From a 3D Scanner for SolidWorks?

Use STL, OBJ, PLY, or another supported mesh format when the scan itself will serve as reference geometry. If you have already reconstructed the part into CAD surfaces or solids, STEP or IGES is generally a more appropriate exchange format for continuing the engineering workflow in SolidWorks.
