3D Parts Scanner: Mechanical Reverse Engineering Guide

A 3D parts scanner captures the accessible surface geometry of a mechanical component and turns it into digital data for reproduction, reverse engineering, or CAD reconstruction. For engineering work, the goal is not simply a dense mesh. The scan must preserve the features that control fit and function, and some dimensions may still need conventional measurement tools.

A practical workflow starts with one question: are you copying the existing shape, repairing a worn part, or rebuilding an editable CAD model?

Start With the End Use

The downstream task determines how the part should be scanned and validated.

Goal	What the Scan Must Provide	Typical Next Step
Reproduce an intact part	Complete geometry and correct scale	Mesh preparation
Modify a part	Reliable interfaces and functional features	CAD reconstruction
Replace a worn or broken part	Existing geometry plus nominal references	Rebuild intended geometry

This distinction matters. If a shaft is worn undersize, a scanner can capture that worn surface accurately—but reproducing it exactly would reproduce the defect. The same applies to a broken mounting tab.

The scan records what exists now; reverse engineering determines what the part should be.

Capture the Geometry That Controls the Part

Before scanning, identify the features that matter mechanically: mating faces, datum surfaces, bores, bosses, shaft centers, bolt patterns, slots, bearing seats, and critical free-form profiles.

Accuracy and resolution also need to be separated.

Resolution describes how finely surface detail can be represented. Precision describes how closely the measured geometry corresponds to the real part. Volumetric accuracy becomes important when dimensional error must remain controlled across a larger measurement distance.

A scanner may resolve a small groove clearly while feature-to-feature dimensions across a long bracket require a different level of dimensional confidence.

Evaluate the specification against the geometry you actually need to control.

How to 3D Scan a Mechanical Part

Prepare and Fixture the Part

Remove loose dirt, grease, chips, or coolant residue that can interfere with surface capture. Secure the component so it cannot move during a scan pass, but avoid covering critical geometry.

Reflective metal, glossy coatings, or very dark surfaces can be harder for some optical scanners. Adjust the scan angle, working distance, mode, or lighting first. If data remains unstable, a temporary matte scan coating may help.

Smooth cylinders, flat plates, and repeated patterns can also cause tracking problems. When supported by the scanner, markers can provide a stable reference network.

Capture Critical and Hidden Surfaces

Build a stable scan on broad surfaces first, then return to smaller features that need additional angles. Maintain enough overlap between scan areas for reliable alignment.

Most mechanical parts need more than one orientation. The surface against the fixture is hidden, while ribs, counterbores, undercuts, and recessed geometry may only be visible from certain directions.

Do not use automatic hole filling to invent a functional feature that was never measured.

If missing geometry affects fit, location, or manufacturing, capture it again or use another measurement method.

Know Where 3D Scanning Stops

Optical scanning is efficient for dense, accessible surface geometry, but it still depends on line of sight.

A deep bore may only be partly visible. If its diameter or depth is critical, a bore gauge, depth micrometer, or CMM may be more appropriate. A precision shaft diameter may deserve a micrometer check.

Threads need similar judgment. A scan can locate a threaded feature and capture its surrounding geometry, but a standard ANSI or ISO thread is usually better identified with a pitch gauge and dimensional measurements, then rebuilt from its nominal definition in CAD.

A useful engineering workflow is often hybrid:

3D scan for accessible surface geometry + conventional metrology for critical or inaccessible dimensions.

Feature	3D Scanner Contribution	Additional Measurement
Free-form housing	Dense surface geometry	Usually limited
Deep bore	Opening and visible surfaces	Bore gauge or CMM
Standard thread	Location and surrounding geometry	Pitch gauge
Precision shaft	Overall geometry	Micrometer

This is not a limitation unique to one scanner. It is a consequence of matching the measurement method to the feature.

Mesh or CAD: What Happens After the Scan?

A cleaned mesh may be enough when the goal is to reproduce an intact shape and the manufacturing process accepts polygon data. Fit-check prototypes and some noncritical additive-manufacturing applications are examples.

For design changes, controlled dimensions, or reusable engineering data, the mesh should usually become reference geometry for CAD reconstruction:

Physical part → 3D scan → clean mesh → reference geometry → parametric CAD

This step matters even more for worn or broken components.

Use unworn areas, symmetry, mating parts, standard component dimensions, or drawings to recover intended geometry. Do not fit the final CAD model blindly to damage simply because the scanner captured it accurately.

How to Choose a 3D Parts Scanner

Match the scanner to the parts and the downstream task.

Consider part size, required local detail, feature-to-feature dimensional requirements, surface material, tracking method, working distance, and access around the component.

For smooth or repetitive mechanical geometry, marker alignment can be useful. For larger components, dimensional consistency across the scan volume may matter more than extremely fine local point spacing.

Also evaluate the software path. If reverse engineering is the goal, mesh cleanup and CAD feature reconstruction matter almost as much as data capture.

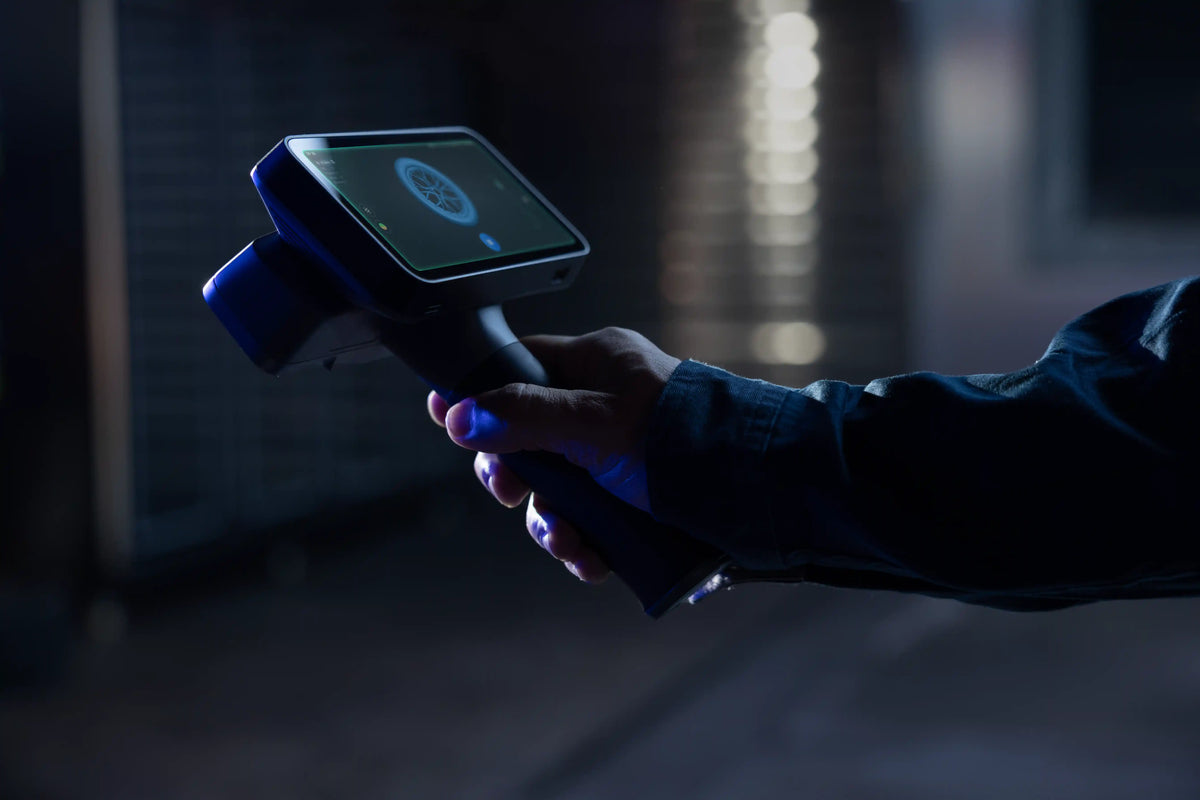

Handheld 3D scanners can be practical for mechanical parts that vary in size, are difficult to move, or require access from multiple angles. They can also be useful for outdoor mechanical scanning when moving a component indoors is not realistic. EinScan Rigil, for example, offers Laser HD and IR Rapid modes and is designed for outdoor lighting, including sunlight. In Laser HD mode, its official specifications list a resolution of 0.05-10 mm and volumetric accuracy up to 0.04 + 0.06 mm/m, with STL, OBJ, PLY, 3MF, and ASC output for downstream CAD and mesh workflows.

For downstream reverse engineering, EXModel provides mesh editing and tools for reconstructing primitives such as planes, cylinders, cones, and spheres, together with reference geometry and sketching functions.

Scanner specifications still need to be judged against the actual part, tolerance requirement, surface condition, and validation method.

Conclusion

A useful 3D parts scanner workflow starts with the mechanical requirement, not the mesh.

Identify the features that control fit and function, capture them from enough angles, and validate critical dimensions with the measurement method best suited to them.

Use a mesh directly when reproduction allows it. Rebuild CAD when design intent, tolerances, wear, or damage require engineering reconstruction. Whether the goal is reproducing industrial components or car parts, tools such as EinScan Rigil and EXModel can support the workflow from physical part capture to reverse-engineered CAD data.

FAQ

Can a 3D Scanner Replace a CMM?

Not for every task. A 3D scanner is well suited to dense capture of accessible surfaces. A CMM or conventional gauge may be more appropriate for critical internal features, tightly controlled datums, or formal dimensional inspection.

Should Standard Threads Be Rebuilt From a Scan Mesh?

Usually not. Use the scan to locate the thread and capture surrounding geometry. Identify the nominal thread with a pitch gauge and dimensional measurements, then rebuild the ANSI or ISO thread in CAD.

How Do You Reverse Engineer a Worn or Broken Part?

Do not assume damaged geometry represents the original design. Use unworn areas, mating parts, symmetry, standard dimensions, drawings, or independent measurements to reconstruct the intended feature while keeping valid scan data as reference.
