Custom automotive parts have always relied on skilled craftsmanship. But when it comes to complex components like exhaust systems, traditional methods—cutting, bending, welding, and test-fitting—can be time-consuming and error-prone.

In this hands-on review by Couch Built, a leading automotive build creator, we see a complete workflow using the Einscan Rigil 3D Scanner to digitally capture the BMW i8 chassis and engine bay geometry for a custom exhaust system. This case demonstrates how modern 3D scanning and digital fabrication tools streamline design, fitment, and manufacturing, making once painstaking tasks far more efficient and precise.

This video walks viewers through Couch Built’s full digital fabrication workflow, from scanning the car to producing the final exhaust system.

Why Introduce 3D Scanning?

Designing an exhaust system for a structurally complex hybrid sports car like the BMW i8 presents significant challenges: extremely tight spaces, the need to avoid chassis components, and heat-sensitive elements. Traditional methods, reliant on repeated measuring, pipe bending, and test-fitting, are time-consuming and prone to error.

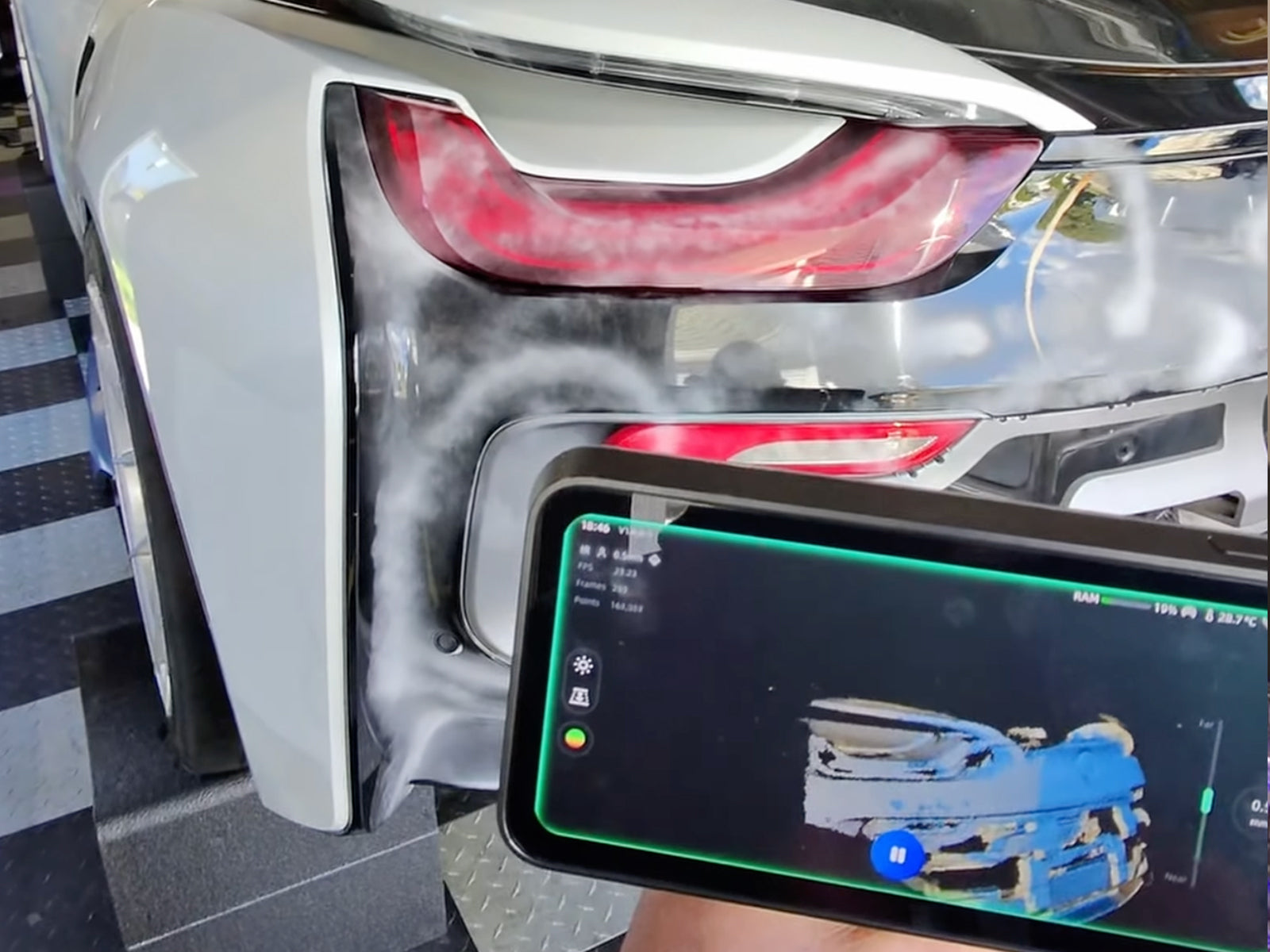

In this project, the team used an Einscan Rigil 3D scanner to scan the vehicle's chassis and engine bay, rapidly obtaining high-precision point cloud data that captured intricate geometries. This created a reliable "digital twin" foundation, allowing the design to be executed accurately within a virtual environment and significantly reducing the cost and risk of physical trial-and-error later.

Breakdown of the Digital Fabrication Workflow

1. 3D Data Capture and Processing

Process: Multiple scanning stations were set up around the vehicle to ensure coverage of all critical areas. Post-scan, the multiple point clouds were aligned, merged, and denoised in software to generate a complete 3D model.

Key Value: The resulting model provides not just shape, but precise spatial relationships and clearances between components—information impossible to derive from 2D drawings alone.

2. CAD Design: Planning with Precision

With the scan data imported into CAD software, Couch Built designs the entire exhaust system virtually. The digital environment allows for:

• Smooth, optimized pipe routing
• Accurate clearance from surrounding components
• Flow-optimized internal bends for performance

This digital-first approach significantly reduces the need for manual adjustments, shortens build time, and eliminates much of the trial-and-error inherent in traditional fabrication methods.

3. 3D Printing: From Virtual Design to Physical Components

Once the CAD model is finalized, the parts are fabricated using 3D printing or precision bending techniques. This workflow enables:

• Complex geometries that would be difficult or impossible with traditional methods
• Rapid prototyping for testing and adjustments
• Almost perfect fitment during assembly

By combining the Einscan Rigil’s accurate scan data with CAD and additive manufacturing, Couch Built demonstrates how digital fabrication transforms custom automotive projects from concept to reality.

Challenges and Important Considerations

Despite its advantages, several practical considerations are crucial for successful implementation—points often understated in product-focused case studies:

• Scanning Environment Demands: Reflective surfaces (like polished pipes) and dark, light-absorbing materials in the engine bay can compromise scan quality. Applying a temporary matte spray or carefully planning lighting and scan angles is often necessary.
• Data Processing Skill Gap: Transforming raw point cloud data into a "clean" CAD reference model requires specialized software skills and time, representing a learning curve for newcomers.
• Total Cost of Technology Integration: Implementing the full workflow involves investment in 3D scanning hardware, design software, and manufacturing equipment (3D printer/CNC bender). For one-off or low-frequency projects, outsourcing certain stages might be more economical.
• Human Expertise Remains Central: Scan data does not automatically generate an optimal design. The engineer's understanding of exhaust flow dynamics, material properties, and fabrication techniques remains the core determinant of the final product's performance and reliability.

Who Can Gain Insights from This Review

This case study provides valuable experience for a range of audiences:

• Automotive enthusiasts & custom fabricators — Learn practical methods to digitalize workflows, reduce trial-and-error, and ensure precise part fitment.
• Small workshops & design studios — Gain strategies to improve production efficiency and avoid common pitfalls in custom fabrication.
• 3D scanning & printing hobbyists — Understand professional-level applications of 3D scanning, CAD planning, and additive manufacturing in real-world projects.

By following Couch Built’s approach, readers can take away actionable knowledge for their own automotive builds or fabrication projects.

Conclusion

Thanks to Couch Built for using the Einscan Rigil 3D Scanner, this case study demonstrates how combining 3D scanning with CAD and 3D printing enables automotive enthusiasts to design and fabricate parts with unprecedented accuracy, speed, and creativity.

This project shows that digital fabrication is no longer exclusive to high-end motorsport — it’s now accessible to independent builders, small shops, and anyone willing to adopt modern scanning and manufacturing technologies.
