1.What is reverse engineering?

Reverse Engineering is the process of extracting design information from an existing part or system and digitally reconstructing it into an editable 3D model. It is widely used in automotive, construction machinery, heavy industry and other fields to help engineers and manufacturers:

• Restore obsolete or missing parts
• Analyze competing designs to optimize your own products
• Repair or replace worn parts
• Customized accessories and personalized modification

The traditional method relies on manual measurement, which has low efficiency and large error, and is difficult to deal with complex surfaces. Modern 3D scanning technology has revolutionized this process.

2.Manual vs. 3D scan

Using high-performance 3D scanners such as EinScan RIGIL and EINSTAR VEGA, engineers can quickly obtain surface data and generate high-resolution digital models, laying a solid foundation for CAD reverse engineering.

3.Reverse engineering process (take EinScan RIGIL & EINSTAR VEGA as an example)

Step 1: Scan the object
Use RIGIL or VEGA to scan the target part and complete high-precision data acquisition in a few minutes.

Step 2: Generate High Quality Mesh
Point cloud data is converted to a closed mesh (STL), which can be cleaned and optimized directly on the device.

Step 3: mesh to CAD model

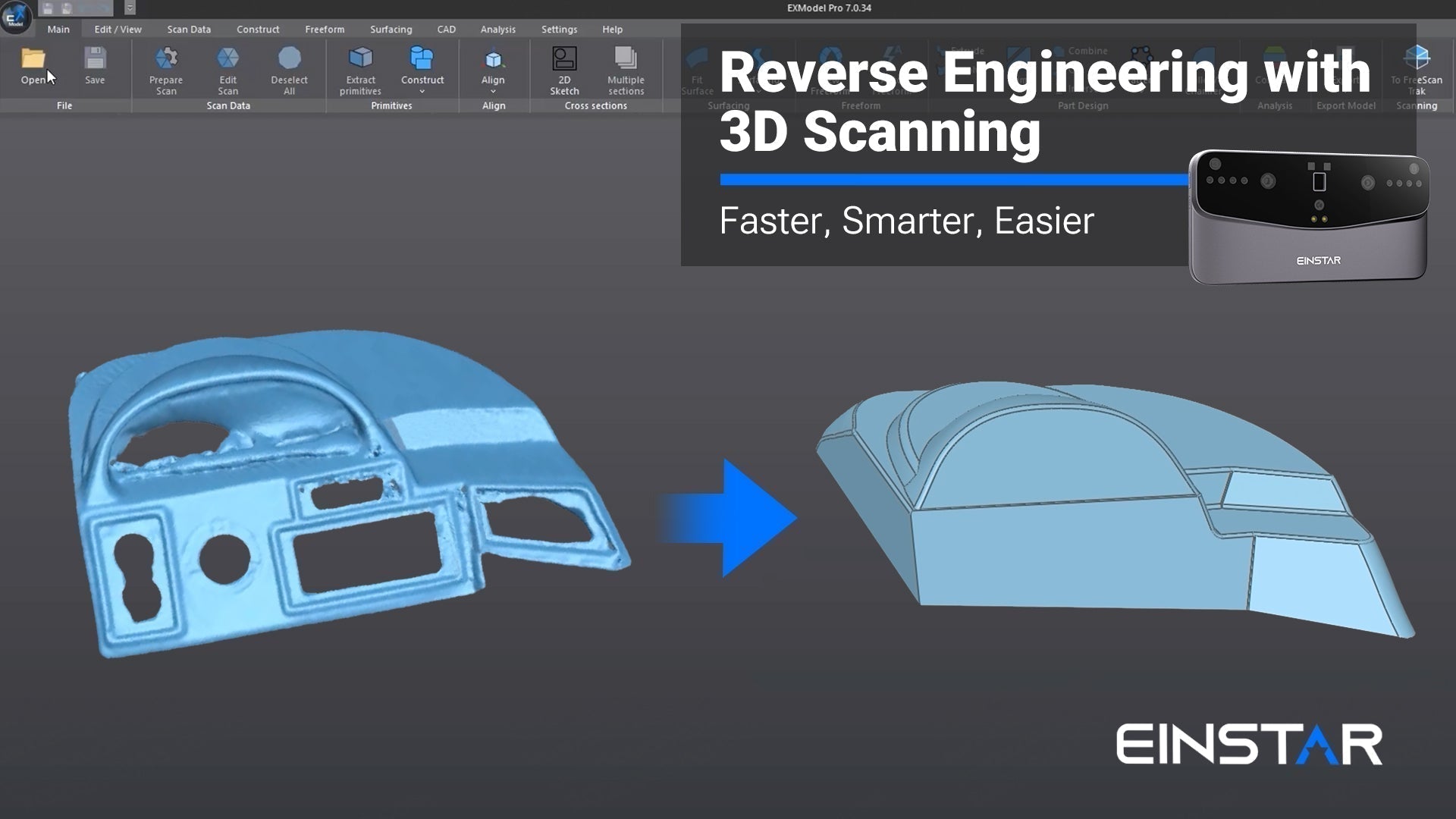

EXModel software through a key to convert the mesh into an editable parametric CAD model.

Step 4: Analysis and Manufacturing
The final CAD model can be used:

• ✔Size optimization and performance improvement
• ✔CAE analysis (stress, fluid, etc.)
• ✔Output CAD files for CNC machining, injection molding or 3D printing

4.Recommend Software: EXModel

EXModel is a key tool for connecting 3D scanning and CAD modeling, with the following advantages:

• One-Click import of scan data
• Automatic generation of parametric CAD models
• Compatible with mainstream CAD platforms
• Support for complex structure modeling and modification

Common applications include: car bumper customization, yacht parts design, mold restoration, electronic product development, etc.

5. Application Cases

🚑Ambulance vehicle modification
Blue Sky Rescue uses VEGA to scan the interior structure to quickly complete layout optimization and equipment integration.

🛥Yacht console customization
Edward uses VEGA to scan yachts in outdoor environments to improve fitting and productivity.

6. Conclusion

With the increasing demand for speed and accuracy in the manufacturing industry, 3D scanning has become an indispensable tool for reverse engineering. Through EinScan RIGIL and EINSTAR VEGA, engineers can achieve:

• Reduction of cost
• Dealing with complex structures
• Accelerate the design and manufacturing process
